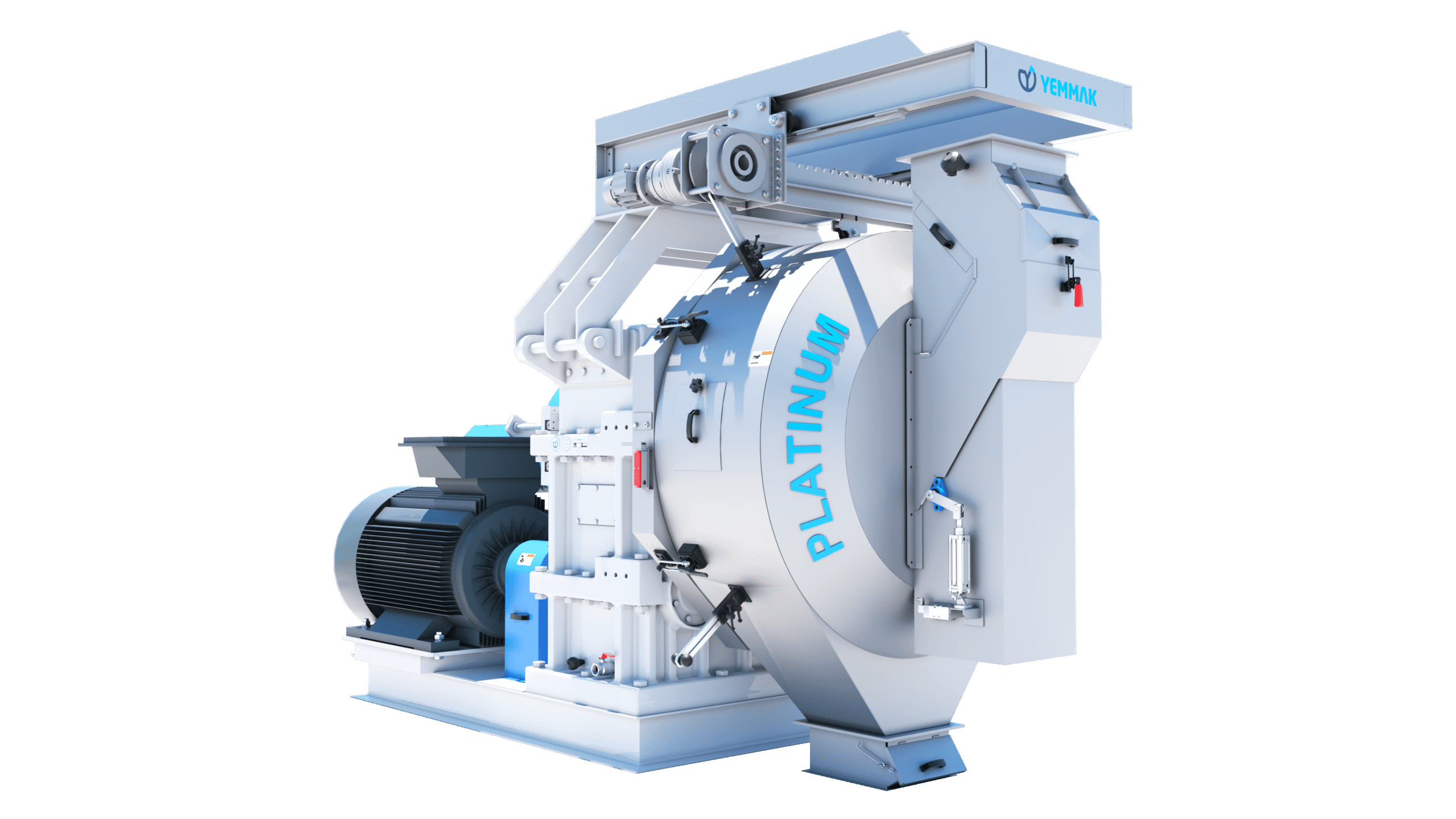

High-Capacity Gear-Driven Pelleting Power The Yemmak Platinum Series Pellet Mill is the definitive solution for high-capacity, heavy-duty pellet production. Engineered to deliver a continuous throughput of 20 to 45 tonnes per hour, this machine is driven by a precision two-stage gear set and powerful motor options ranging from 315 kW to 560 kW. It provides the mechanical torque and durability required to process difficult formulations across animal compound feed, biomass, plastics, and chemical processing.

Advanced Automation and Safety with ARGAS® To ensure uninterrupted operation and structural integrity, the Platinum Series can be equipped with the optionally available Automatic Roll Gap Adjustment System (ARGAS®). Driven by hydraulic cylinders with embedded linear encoders, ARGAS® constantly monitors operating parameters in real-time. In the event of an overload or parameter breach, the system acts automatically to open the rolls in seconds, preventing mechanical jamming and dramatically reducing maintenance downtime.

Key Technical Advantages:

• Massive Throughput: Achieves capacities between 20 and 45 tph utilizing massive die diameters from 900 mm to 1144 mm.

• Two-Stage Gear Drive: Specially machined, high-efficiency gear set provides unmatched strength, durability, and energy savings compared to belt-driven alternatives.

• Intelligent Lubrication: Integrated “forced oil circulation” system with a heat exchanger and flow sensors ensures perfect continuous lubrication across 7 critical points.

• Condensation Control: Features a double-skin stainless steel pellet chamber designed to prevent pastry-like material buildup on inner surfaces.

• Automated Protection: Optional ARGAS® technology prevents mechanical jamming and optimizes the die-to-roller gap with extreme accuracy.
